Match the illustrations of Arch Types in Group I with their corresponding names in Group II.

Group I

(P)

Diagram for Architecture and Planning question 57

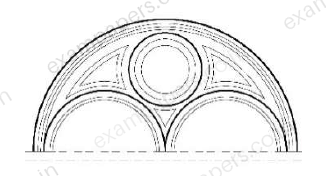

(Q)

Diagram for Architecture and Planning question 57 (figure 2)

(R)

Diagram for Architecture and Planning question 57 (figure 3)

(S)

Diagram for Architecture and Planning question 57 (figure 4)

Group II

(1) Venetian Arch

(2) Ogee Arch

(3) Moorish Multifoil Arch

(4) Corbelled Arch

(5) Shouldered Arch

Your answerChoose one option.

P-2, Q-3, R-1, S-4

P-3, Q-1, R-2, S-5

P-3, Q-2, R-5, S-4

P-5, Q-4, R-3, S-1

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

Match the architectural projects in Group I with their corresponding architects in Group II.

Group I		Group II
(P)	Indian Institute of Management Bangalore	(1) Revathi Kamath
(Q)	Osho International Meditation Resort, Pune	(2) Brinda Somaya
(R)	Nalanda International School, Vadodara	(3) Roger Anger
(S)	Matrimandir, Auroville	(4) B. V. Doshi
		(5) Hafeez Contractor

Your answerChoose one option.

P-4, Q-5, R-2, S-3

P-4, Q-1, R-5, S-2

P-2, Q-4, R-5, S-1

P-3, Q-5, R-1, S-2

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

Match the structural joining systems in Group I with the corresponding materials for which they are commonly used in Group II.

Group I		Group II
(P)	Welding	(1)	Glass
(Q)	Spider Connector	(2)	Plastic
(R)	Mortise and Tenon	(3)	Brick
(S)	Mortar	(4)	Steel
		(5)	Timber

Your answerChoose one option.

P-4, Q-1, R-2, S-5

P-3, Q-5, R-1, S-2

P-2, Q-3, R-5, S-1

P-4, Q-1, R-5, S-3

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

Match the Instruments in Group I with the corresponding climate parameters in Group II.

Group I		Group II
(P)	Pyranometer	(1)	Humidity
(Q)	Disdrometer	(2)	Wind
(R)	Hygrometer	(3)	Solar Radiation
(S)	Anemometer	(4)	Pressure
		(5)	Precipitation

Your answerChoose one option.

P-3, Q-5, R-1, S-2

P-3, Q-4, R-5, S-2

P-5, Q-3, R-2, S-4

P-1, Q-2, R-3, S-5

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

In traditional Indian temple architecture, which of the following statement(s) is/are true?

Your answerSelect all correct options. You can choose more than one.

Jagamohana refers to a dancing hall

Gopuram refers to an entrance tower

Char-chala refers to a roof composed of four triangular segments

Vimana refers to the structure over the Garbhagriha

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

Which of the following factors impact Daylight Autonomy of a built space?

Your answerSelect all correct options. You can choose more than one.

Orientation of building

Glare caused by daylight

Latitude and longitude of building location

Fenestration size

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

For the beam shown in the following Figure, assume a sagging moment (generating tensile stresses at the bottom fibre) as positive and a hogging moment (generating tensile stresses at the top fibre) as negative, the bending moment (in kN.m, rounded off to one decimal place) at section X-X is __________.

Diagram for Architecture and Planning question 63

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

The acoustical absorption of a wall panel in each octave band is tabulated below. The Noise Reduction Coefficient of the wall panel (rounded off to two decimal places) is __________.

63 Hz	125 Hz	250 Hz	500 Hz	1000 Hz	2000 Hz	4000 Hz	8000 Hz	1600 Hz
0.1	0.2	0.5	0.5	0.7	0.8	0.8	0.9	0.9

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

A room is maintained at a wet bulb temperature of 25 °C, globe temperature of 30 °C, and air velocity of 0.5 m/s. The decrease in Tropical Summer Index when the air velocity is increased to 3 m/s (in °C, rounded off to two decimal places) is __________.

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

Which of the following is the National Electronic Toll Collection System implemented by the National Payment Corporation of India?

Your answerChoose one option.

e-Pass

E-ZPass

HashTag

FASTag

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer
