The minimum number of masonry units of size 200 mm × 100 mm × 100 mm each, required to construct a solid dry wall of length 3 m, height 2 m, and thickness 0.20 m, is __________ (in integer).

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

Which of the following is/are correct labeling of P, Q, R, S, T with respect to the illustration of a suspension bridge as shown below?

Diagram for Architecture and Planning question 36

Your answerSelect all correct options. You can choose more than one.

Q – Stay Cable, R – Pylon, T – Sag

P – Anchorage, S – Pylon, T – Primary Suspended Cable

Q – Stay Cable, R – Stiffening Deck, S – Pylon

P – Stiffening Deck, R – Pylon, T – Primary Suspended Cable

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

The section of a R.C.C. staircase flight is shown in the figure below. Each riser and tread of the staircase is 150 mm and 300 mm, respectively. The steps are supported by a 75 mm thick waist slab.

The width of the staircase is 1500 mm. The flight consists of 10 steps. Consider reinforcement to be 0.75% by volume of the total R.C.C. The density of steel is 7800 kg/m³. The amount of reinforcement required to construct the staircase flight (in kg) is __________ (rounded off to two decimal places).

Diagram for Architecture and Planning question 44

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

Setting out of the foundation is a process executed

Your answerChoose one option.

after the foundation excavation

after the foundation concreting

before the foundation excavation

before the placing of plinth beam reinforcement

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

A column transmits a load of 225 kN to a square footing. The safe bearing capacity of the soil is 100 kN/m². The minimum length (in m) of the side of this safe square footing is ____________ (rounded off to one decimal place).

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

As per the National Building Code of India 2016, match the types of glass in Group-I with their corresponding descriptions in Group-II.

Group-I: P — Reflective glass; Q — Tempered fire-resistant glass; R — Insulating glass units; S — Wired glass. Group-II: 1 — Prefab unit of glass having an edge seal that binds the individual sheets together; 2 — Glass into which a wire mesh is embedded during production; 3 — Rolled glass having a distinct pattern on one or both sides; 4 — Glass with metal coating reducing heat gain and glare and allowing optimum visible light transmission inside; 5 — Glass that breaks into granular fragments, with no large sharp edges.

Your answerChoose one option.

P – 5, Q – 4, R – 3, S – 2

P – 4, Q – 2, R – 1, S – 3

P – 4, Q – 5, R – 1, S – 2

P – 1, Q – 5, R – 4, S – 3

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

Which of the following statements is/are correct in the context of steel construction?

Your answerSelect all correct options. You can choose more than one.

Weathered steel forms a rust-like layer when exposed to weather.

Intumescent paints on steel sections improve passive fire protection.

For the same weight, steel I-beam has more flexure-bearing capacity in comparison to Castellated steel beam.

Outrigger systems provide additional torsional rigidity against lateral loads in tall structures.

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

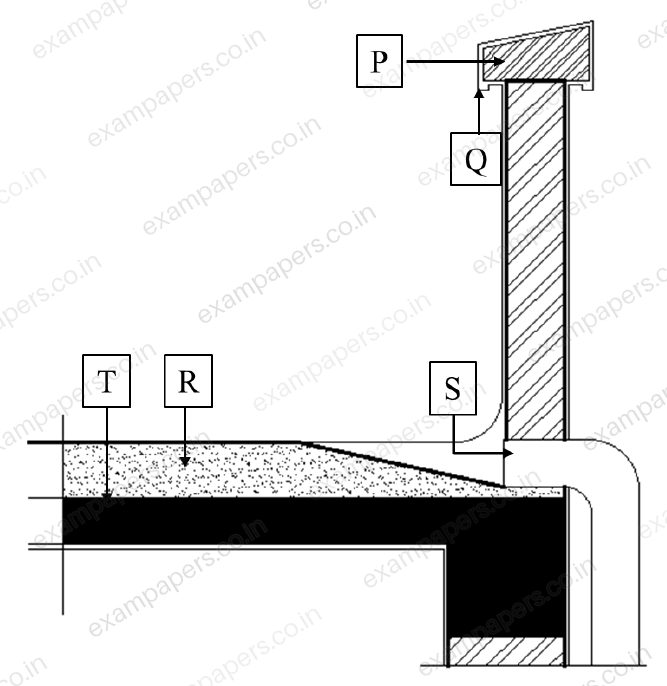

The different parts of a parapet wall and terrace section are labeled as P, Q, R, S, T. Which of the following is/are correct?

Diagram for Architecture and Planning question 61

Your answerSelect all correct options. You can choose more than one.

P – Coping, R – Lime terracing, S – Rainwater pipe

Q – Drip course, S – Rainwater pipe, T – Roof slab

P – Vent pipe, Q – Drip course, R – Roof slab

P – Vent pipe, R – Rainwater pipe, T – Roof slab

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

An overhang beam ABC is loaded with uniform distributed load (UDL) throughout its entire span as per the figure below. The intensity of UDL is 12 kN/m. The bending moment at an intermediate point P (between A and B) is found to be zero. The length (in m) of the portion AP is __________ (rounded off to two decimal places).

Diagram for Architecture and Planning question 63

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

In a regular semi-circular arch of 2 m clear span, the thickness of the arch is 30 cm and the breadth of the wall is 40 cm. The total quantity of brickwork in the arch is ____________ m³. (rounded off to two decimal places)

Diagram for Architecture and Planning question 41

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer
