A closed thin-walled tube has thickness,

, mean enclosed area within the boundary of the centerline of tube’s thickness,

, and shear stress,

. Torsional moment of resistance,

, of the section would be

Your answerChoose one option.

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

An element is subjected to biaxial normal tensile strains of 0.003 and 0.002. The normal strain in the plane of maximum shear strain is

Your answerChoose one option.

Zero

0.0010

0.0025

0.0050

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

A steel column is restrained against both translation and rotation at one end and is restrained only against rotation but free to translate at the other end. Theoretical and design (IS:800-2007) values, respectively, of effective length factor of the column are

Your answerChoose one option.

1.0 and 1.0

1.2 and 1.0

1.2 and 1.2

1.0 and 1.2

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

Consider the pin-jointed plane truss shown in the figure (not drawn to scale). Let

, and

denote the vertical reactions (upward positive) applied by the supports at P, Q, and R respectively, on the truss. The correct combination of

is represented by

Diagram for Civil Engineering question 7

Your answerChoose one option.

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

If the fineness modulus of a sample of fine aggregates is 4.3, the mean size of the particles in the sample is between

Your answerChoose one option.

150 μm and 300 μm

300 μm and 600 μm

1.18 mm and 2.36 mm

2.36 mm and 4.75 mm

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

Assuming that there is no possibility of shear buckling in the web, the maximum reduction permitted by IS 800-2007 in the (low-shear) design bending strength of a semi-compact steel section due to high shear is

Your answerChoose one option.

zero

25%

50%

governed by the area of the flange

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

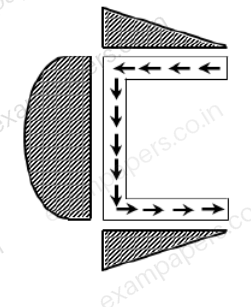

For a channel section subjected to a downward vertical shear force at its centroid, which one of the following represents the correct distribution of shear stress in flange and web?

Your answerChoose one option.

Diagram for Civil Engineering question 8

Diagram for Civil Engineering question 8 (figure 2)

Diagram for Civil Engineering question 8 (figure 3)

Diagram for Civil Engineering question 8 (figure 4)

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

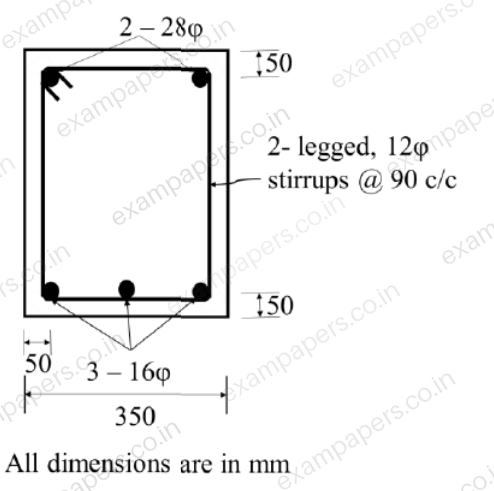

In the reinforced beam section shown in the figure (not drawn to scale), the nominal cover provided at the bottom of the beam as per IS 456-2000, is

Diagram for Civil Engineering question 9

Your answerChoose one option.

30 mm

36 mm

42 mm

50 mm

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

Which one of the following options contains ONLY primary air pollutants?

Your answerChoose one option.

Hydrocarbons and nitrogen oxides

Hydrocarbons and ozone

Ozone and peroxyacetyl nitrate

Nitrogen oxides and peroxyacetyl nitrate

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

The interior angles of four triangles are given below:

Triangle	Interior Angles
P	85°, 50°, 45°
Q	100°, 55°, 25°
R	100°, 45°, 35°
S	130°, 30°, 20°

Which of the triangles are ill-conditioned and should be avoided in Triangulation surveys?

Your answerChoose one option.

Both P and R

Both Q and R

Both P and S

Both Q and S

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer
