The horizontal beam shown in the figure has fixed supports at F and L. Internal hinges are provided at locations G and J. The beam supports vertical downward concentrated loads as well as uniformly distributed loads, as shown in the figure.

Diagram for Civil Engineering question 18

The upward vertical reaction (in kN) at the support L is

Your answerChoose one option.

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

A plane truss consists of two linearly elastic, homogeneous, identical members, namely PQ and QR. Both members have length

, cross-sectional area

, and modulus of elasticity

. The members are inclined at

as shown in the figure. The truss has hinge supports at P and R. The translational degrees-of-freedom (u and v) are shown at joint Q.

Diagram for Civil Engineering question 38

After application of the boundary conditions, the stiffness matrix of the truss becomes:

Your answerChoose one option.

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

A simply supported, linearly elastic, homogeneous, prismatic beam of length L and flexural rigidity EI is shown in the figure.

The expression for the Influence Line Diagram (ILD) of the rotation

at the support B is

Your answerChoose one option.

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

The plane frame has a hinge and a roller support, and is loaded as shown in the figure. Both the columns have same height.

Diagram for Civil Engineering question 39

What is the absolute value of the maximum bending moment (in kN-m) in the frame?

Your answerChoose one option.

165

150

240

195

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

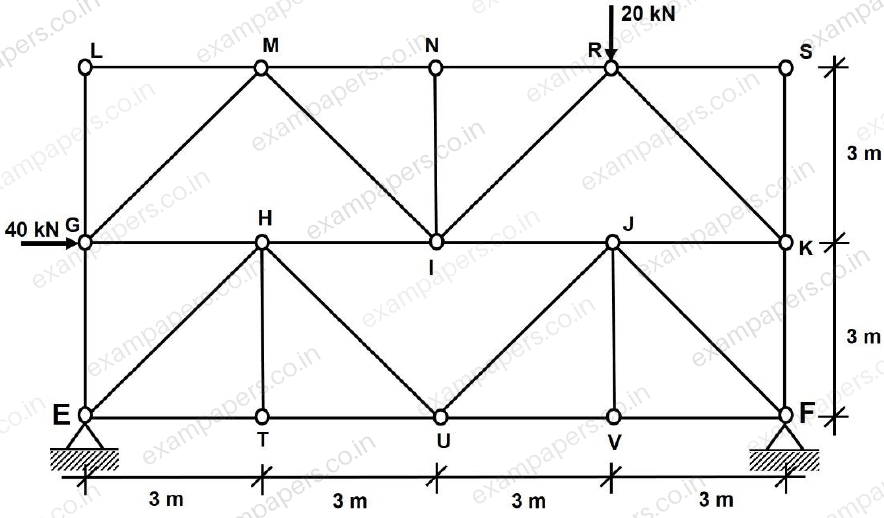

The plane truss shown in the figure is hinge-supported at E and F. The truss is subjected to vertical downward force at R and horizontal force at G.

The force (in kN) along with its nature in member JF is

Your answerChoose one option.

compression

tension

compression

tension

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

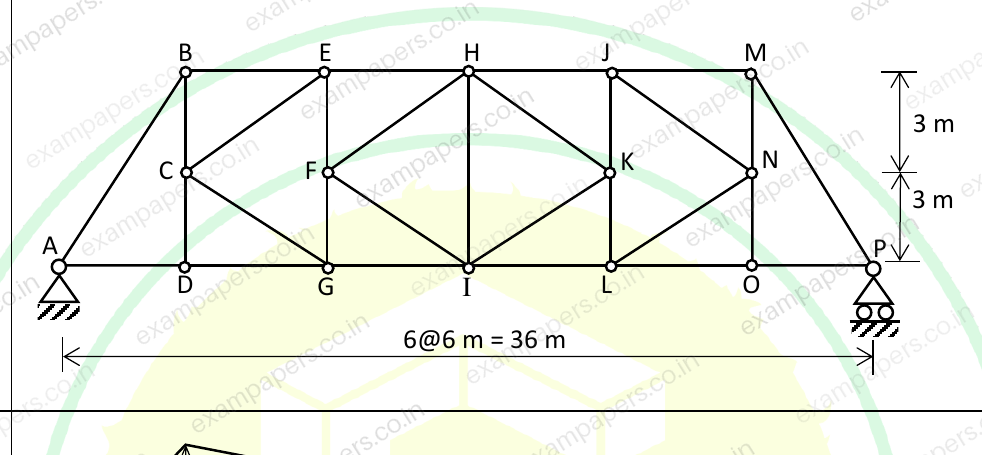

Consider the pin-jointed truss shown in the figure. Influence line is drawn for the axial force in the member G-I, when a unit load travels on the bottom chord of the truss. Identify the CORRECT influence line from the following options:

Note: Positive value corresponds to tension and negative value corresponds to compression in the member.

Diagram for Civil Engineering question 14

Your answerChoose one option.

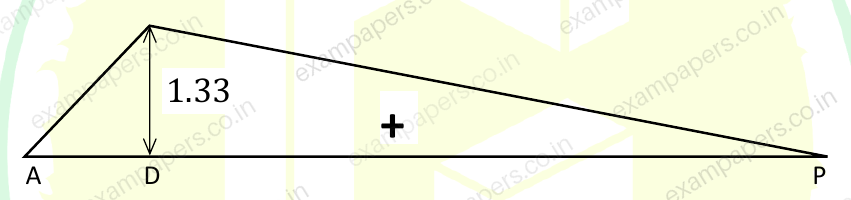

Diagram for Civil Engineering question 14 (figure 2)

Diagram for Civil Engineering question 14 (figure 3)

Diagram for Civil Engineering question 14 (figure 4)

Diagram for Civil Engineering question 14 (figure 5)

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

Consider the frame shown in the figure under the loading of 100 kN.m couples at the joints B and G. Considering only the effects of flexural deformations, which of the following statements is/are true:

Diagram for Civil Engineering question 29

Your answerSelect all correct options. You can choose more than one.

Axial force is zero in the member CD

Shear force is zero in the member CD

There is no rotation in the joint C

The magnitude of bending moment developed in the member BC at the end C is more than 50 kN.m

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

In the rigid-jointed frame shown in the figure, the distribution factor of the member AD is close to

Diagram for Civil Engineering question 37

Your answerChoose one option.

0.254

0.267

0.398

0.421

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

The figure shows a propped cantilever with uniform flexural rigidity

(in N.m²) and subjected to a moment

(in N.m). Consider forces and displacements in the upward direction as positive.

Find the upward reaction at the proped support B (in N) when this support settles by (

), given in metres.

Your answerChoose one option.

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

Consider the beam ACDEB given in the figure. Which of the following statements is/are correct:

Diagram for Civil Engineering question 41

Your answerSelect all correct options. You can choose more than one.

Bending moment is zero between the points A and C

There is a sudden jump in shear force at the point D

There is a sudden jump in bending moment at the point E

Bending moment is zero somewhere between the points D and E

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer
