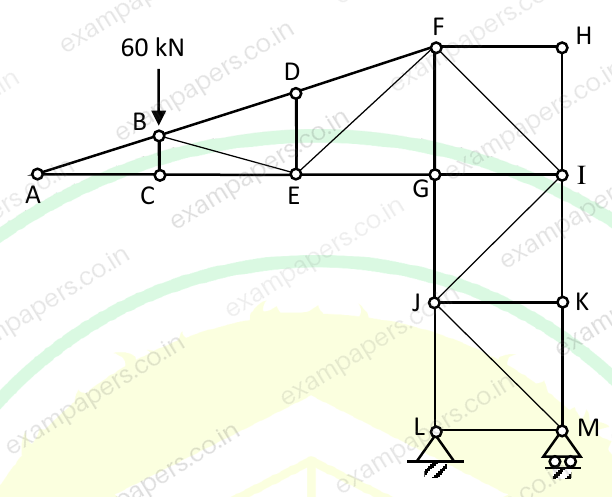

In the pin-jointed truss shown in the figure, the members that carry zero force are identified. Which of the following options is/are zero-force members?

Diagram for Civil Engineering question 46

Your answerSelect all correct options. You can choose more than one.

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

Consider the rigid bar ABC supported by the pin-jointed links BD and CE and subjected to a load P at the end A, as shown in the figure. The axial rigidities of BD and CE are 22500 kN and 15000 kN, respectively. If CE elongates by 5 mm due to the load P, the magnitude of the downward deflection (in mm) of the end A would be _____________ (rounded off to the nearest integer).

Diagram for Civil Engineering question 51

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

A steel beam supported by three parallel pin-jointed steel rods is shown in the figure. The moment of inertia of the beam is

. Take modulus of elasticity of steel as 210 GPa. The beam is subjected to uniform distributed load of 6.25 kN/m, including its self-weight. The axial force (in kN) in the centre rod CD is _____ (round off to one decimal place).

Diagram for Civil Engineering question 52

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

The plane frame shown in the figure has fixed support at joint A, hinge support at joint F, and roller support at joint I. In the figure, A to I indicate joints of the frame.

Diagram for Civil Engineering question 33

If the axial deformations are neglected, the degree of kinematic indeterminacy is __________ (in integer).

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

A linearly elastic beam of length 2l with flexural rigidity EI has negligible mass. A massless spring with a spring constant k and a rigid block of mass m are attached to the beam as shown in the figure. The natural frequency of this system is

Diagram for Civil Engineering question 37

Your answerChoose one option.

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

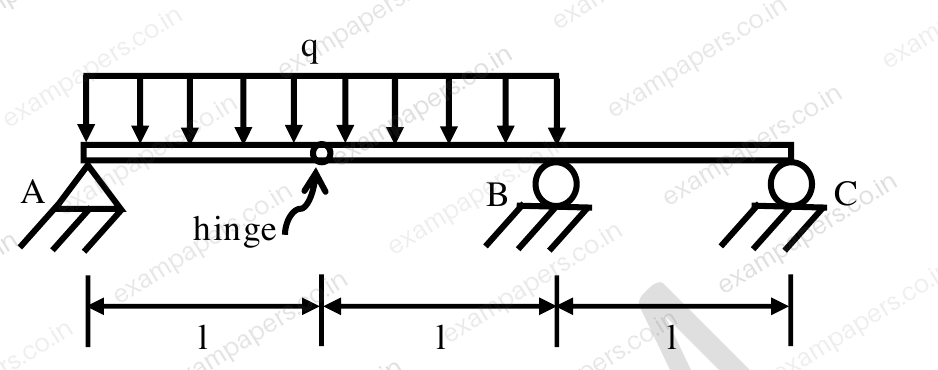

The beam shown in the figure is subjected to a uniformly distributed downward load of intensity

between supports A and B.

Diagram for Civil Engineering question 39

Considering the upward reactions as positive, the support reactions are

Your answerChoose one option.

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

The plane truss shown in the figure has 13 joints and 22 members. The truss is made of a homogeneous, prismatic, linear elastic material. All members have identical axial rigidity. A to M indicate the joints of the truss. The truss has pin supports at joints A and L and roller support at joint K. The truss is subjected to a 10 kN vertically downward force at joint H and a 10 kN horizontal force in the rightward direction at joint B as shown.

Diagram for Civil Engineering question 49

The magnitude of the reaction (in kN) at the pin support L is __________ (rounded off to 1 decimal place).

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

For the 6 m long horizontal cantilever beam PQR shown in the figure, Q is the mid-point. Segment PQ of the beam has flexural rigidity

whereas the segment QR has infinite flexural rigidity. Segment QR is subjected to uniformly distributed, vertically downward load of 5 kN/m.

(Figure NOT to scale)

The magnitude of the vertical displacement (in mm) at point Q is __________ (rounded off to 3 decimal places).

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

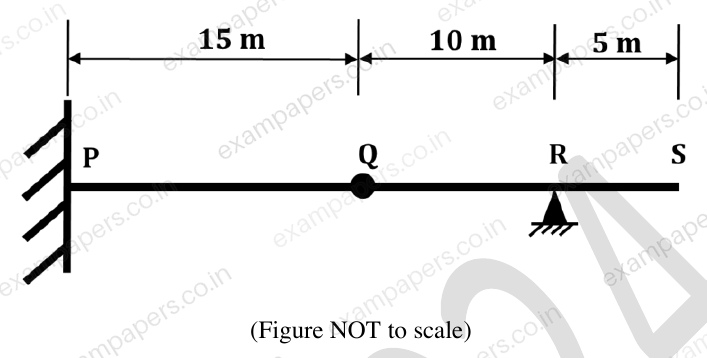

The horizontal beam PQRS shown in the figure has a fixed support at point P, an internal hinge at point Q, and a pin support at point R. A concentrated vertically downward load (V) of 10 kN can act at any point over the entire length of the beam.

Diagram for Civil Engineering question 50

The maximum magnitude of the moment reaction (in kN.m) that can act at the support P due to V is ________ (in integer).

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

Muller-Breslau principle is used in analysis of structures for _________________.

Your answerChoose one option.

drawing an influence line diagram for any force response in the structure

writing the virtual work expression to get the equilibrium equation

superposing the load effects to get the total force response in the structure

relating the deflection between two points in a member with the curvature diagram in-between

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer
