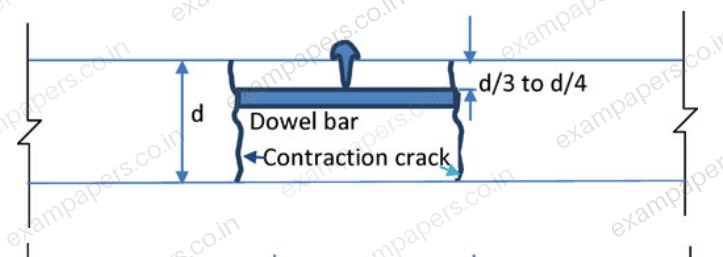

A dowel bar is placed at a contraction joint. When contraction occurs, the concrete slab cracks at predetermined location(s). Identify the arrangement, which shows the correct placement of dowel bar and the place of occurrence of the contraction crack(s).

Your answerChoose one option.

Diagram for Civil Engineering question 31

Diagram for Civil Engineering question 31 (figure 2)

Diagram for Civil Engineering question 31 (figure 3)

Diagram for Civil Engineering question 31 (figure 4)

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

The flow-density relationship of traffic on a highway is shown in the figure

. The correct representation of speed-density relationship of the traffic on this highway is

Your answerChoose one option.

Diagram for Civil Engineering question 31 (figure 5)

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

The relationship between traffic flow rate (q) and density (D) is shown in the figure. The shock wave condition is depicted by

Diagram for Civil Engineering question 32

Your answerChoose one option.

flow with respect to point 1 (q₁ = qₘₐₓ)

flow changing from point 2 to point 6 (q₂ > q₆)

flow changing from point 3 to point 7 (q₃ < q₇)

flow with respect to point 4 and point 5 (q₄ = q₅)

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

Group-I gives a list of test methods for evaluating properties of aggregates. Group-II gives the list of properties to be evaluated.

Group-I: Test methods P. Soundness test Q. Crushing test R. Los Angeles abrasion test S. Stripping value test

Group-II: Properties

Strength

Resistance to weathering

Adhesion

Hardness

The correct match of test methods under Group-I to properties under Group-II, is

Your answerChoose one option.

P-4; Q-1; R-2; S-3

P-2; Q-1; R-4; S-3

P-3; Q-4; R-1; S-2

P-2; Q-4; R-3; S-1

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

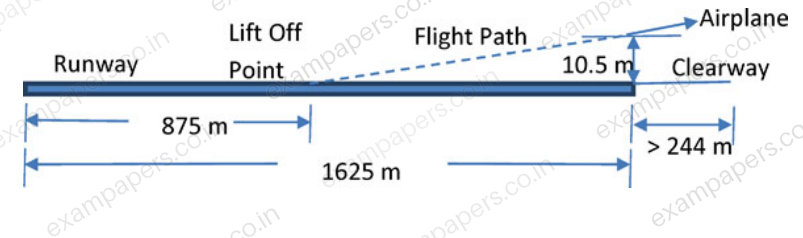

The appropriate design length of a clearway is calculated on the basis of ‘Normal Take-off condition’. Which one of the following options correctly depicts the length of the clearway? (Note: None of the options are drawn to scale.)

Your answerChoose one option.

Diagram for Civil Engineering question 33

Diagram for Civil Engineering question 33 (figure 2)

Diagram for Civil Engineering question 33 (figure 3)

Diagram for Civil Engineering question 33 (figure 4)

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

For the hottest month of the year at the proposed airport site, the monthly mean of the average daily temperature is 39°C. The monthly mean of the maximum daily temperature is 48°C for the same month of the year. From the given information, the calculated Airport Reference Temperature (in °C), is

Your answerChoose one option.

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

The total stress paths corresponding to different loading conditions, for a soil specimen under the isotropically consolidated stress state (O), are shown below. The correct match between the stress paths and the listed loading conditions, is

Diagram for Civil Engineering question 34

Your answerChoose one option.

OP – I, OQ – II, OR – IV, OS – III

OP – IV, OQ – III, OR – I, OS – II

OP – III, OQ – II, OR – I, OS – IV

OP – I, OQ – III, OR – II, OS – IV

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

Permeability tests were carried out on the samples collected from two different layers as shown in the figure (not drawn to the scale). The relevant horizontal (k_h) and vertical (k_v) coefficients of permeability are indicated for each layer.

The ratio of the equivalent horizontal to vertical coefficients of permeability, is

Your answerChoose one option.

37.29

80.20

68.25

0.03

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

The soil profile at a site up to a depth of 10 m is shown in the figure (not drawn to the scale). The soil is preloaded with a uniform surcharge (q) of 70 kN/m² at the ground level. The water table is at a depth of 3 m below ground level. The soil unit weight of the respective layers is shown in the figure.

Diagram for Civil Engineering question 35

Consider unit weight of water as 9.81 kN/m³ and assume that the surcharge (q) is applied instantaneously. Immediately after preload, the effective stresses (in kPa) at points P and Q, respectively, are

Your answerChoose one option.

124 and 204

36 and 90

36 and 126

54 and 95

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

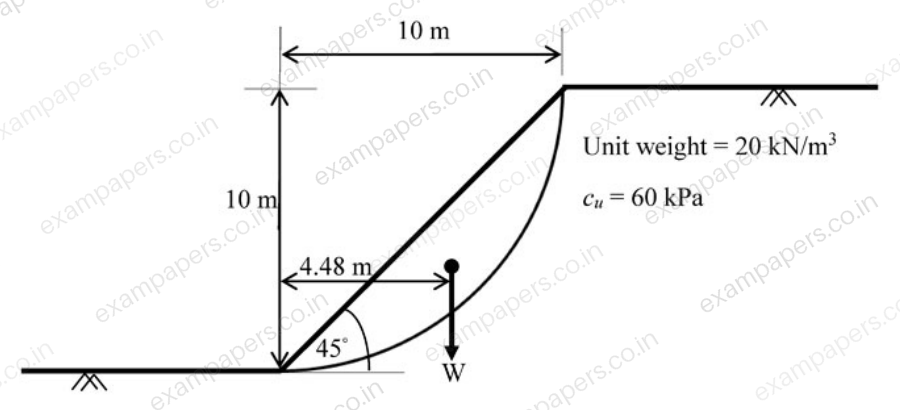

A 10 m high slope of dry clay soil (unit weight = 20 kN/m³), with a slope angle of 45° and the circular slip surface, is shown in the figure (not drawn to the scale). The weight of the slip wedge is denoted by W. The undrained unit cohesion (c_u) is 60 kPa.

The factor of safety of the slope against slip failure, is

Your answerChoose one option.

1.84

1.57

0.58

1.67

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer
