In the given circuit, for voltage

to be zero, the value of β should be ______. (Round off to 2 decimal places.)

Diagram for Electrical Engineering question 16

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

A 1 μC point charge is held at the origin of a cartesian coordinate system. If a second point charge of 10 μC is moved from (0, 10, 0) to (5, 5, 5) and subsequently to (5, 0, 0), then the total work done is ____ mJ. (Round off to 2 decimal place). Take

in SI units. All coordinates are in meters.

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

The power input to a 500 V, 50 Hz, 6-pole, 3-phase induction motor running at 975 RPM is 40 kW. The total stator losses are 1 kW. If the total friction and windage losses are 2.025 kW, then the efficiency is ________%.

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

An alternator with internal voltage of

p.u. and synchronous reactance of 0.4 p.u is connected by a transmission line of reactance 0.1 p.u to a synchronous motor having synchronous reactance 0.35 p.u and internal voltage of

p.u. If the real power supplied by the alternator is 0.866 p.u, then

is ____ degrees. (Round off to 2 decimal places.) (Machines are of non-salient type. Neglect resistances.)

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

The Bode magnitude plot for the transfer function

of the circuit is as shown. The value of R is ________ Ω. (Round off to 2 decimal places.)

Diagram for Electrical Engineering question 20

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

A signal generator having a source resistance of 50 Ω is set to generate a 1 kHz sinewave. Open circuit terminal voltage is 10 V peak-to-peak. Connecting a capacitor across the terminals reduces the voltage to 8 V peak-to-peak. The value of this capacitor is ______ μF. (Round off to 2 decimal places.)

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

A 16-bit synchronous binary up-counter is clocked with a frequency

. The two most significant bits are OR-ed together to form an output Y. Measurements show that Y is periodic, and the duration for which Y remains high in each period is 24 ms. The clock frequency

is ____________ MHz. (Round off to 2 decimal places.)

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

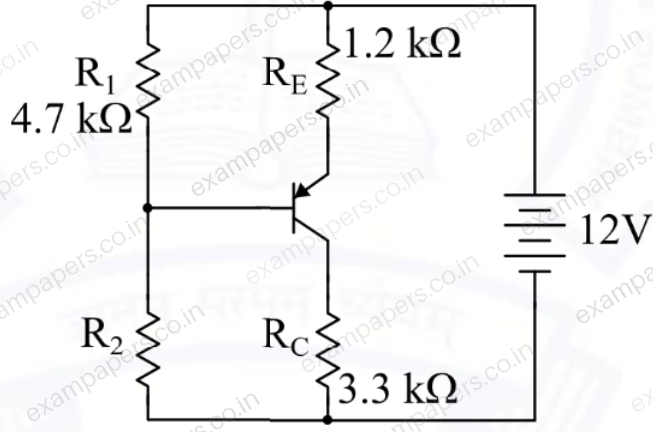

In the BJT circuit shown, beta of the PNP transistor is 100. Assume

V. The voltage across

will be 5 V when

is ____ kΩ. (Round off to 2 decimal places.)

Diagram for Electrical Engineering question 23

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

In the circuit shown, the input

is a sinusoidal AC voltage having an RMS value of

. The worst-case peak-inverse voltage seen across any diode is _____ V. (Round off to 2 decimal places.)

Diagram for Electrical Engineering question 24

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

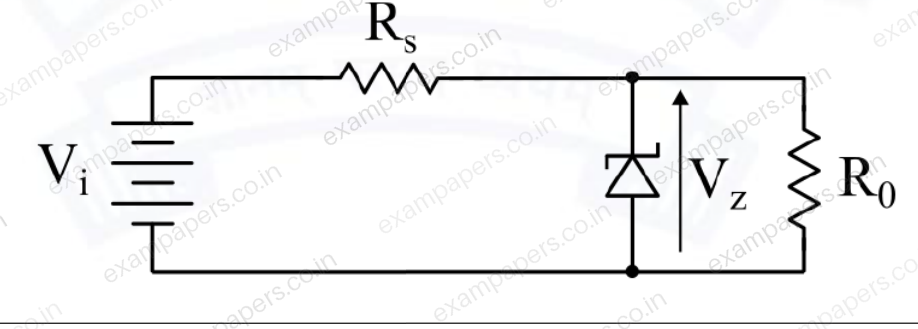

In the circuit shown, a 5 V Zener diode is used to regulate the voltage across load

. The input is an unregulated DC voltage with a minimum value of 6 V and a maximum value of 8 V. The value of

is 6

. The Zener diode has a maximum rated power dissipation of 2.5 W. Assuming the Zener diode to be ideal, the minimum value of

is _____

Diagram for Electrical Engineering question 25

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer
