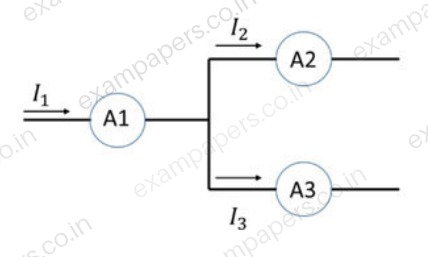

Currents through ammeters A2 and A3 in the figure are

and

, respectively. The reading of the ammeter A1(rounded off to 3 decimal places) is ______ A.

Diagram for Electrical Engineering question 18

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

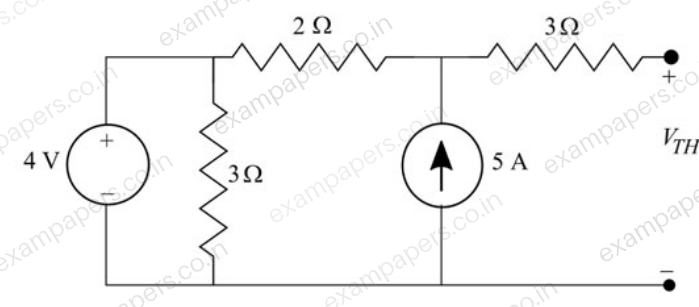

The Thevenin equivalent voltage,

, in V (rounded off to 2 decimal places) of the network shown below, is ____________.

Diagram for Electrical Engineering question 19

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

A benchtop dc power supply acts as an ideal 4 A current source as long as its terminal voltage is below 10 V. Beyond this point, it begins to behave as an ideal 10 V voltage source for all load currents going down to 0 A. When connected to an ideal rheostat, find the load resistance value at which maximum power is transferred, and the corresponding load voltage and current.

Your answerChoose one option.

Short,

A, 10 V

Open, 4 A, 0 V

2.5

, 4 A, 10 V

2.5

, 4 A, 5 V

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

A resistor and a capacitor are connected in series to a 10 V dc supply through a switch. The switch is closed at

, and the capacitor voltage is found to cross 0 V at

, where

is the circuit time constant. The absolute value of percentage change required in the initial capacitor voltage if the zero crossing has to happen at

is ______ (rounded off to 2 decimal places).

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

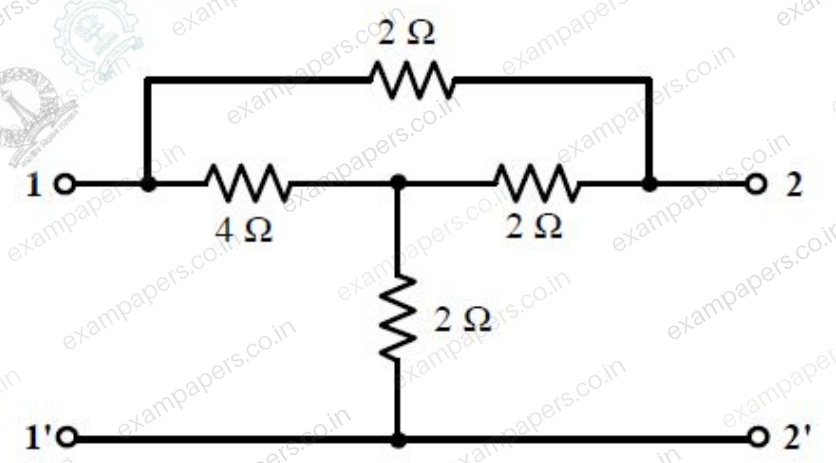

For the given 2-port network, the value of transfer impedance

in ohms is ________.

Diagram for Electrical Engineering question 21

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

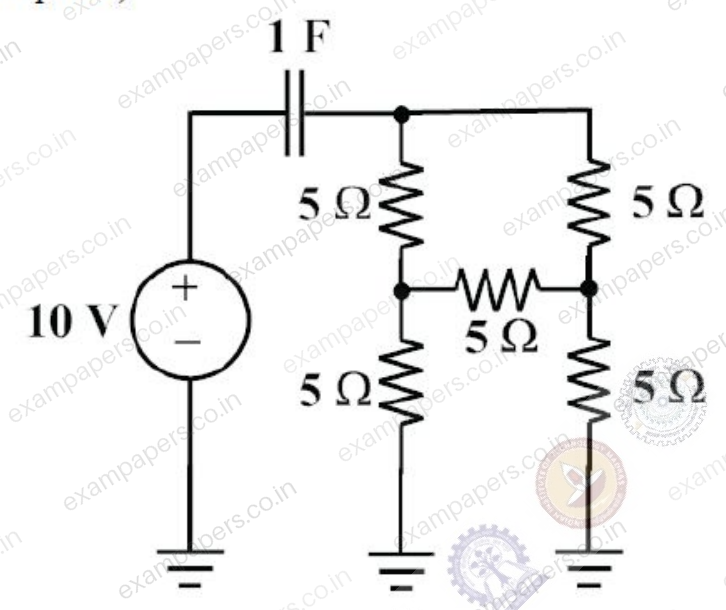

The initial charge in the 1 F capacitor present in the circuit shown is zero. The energy in joules transferred from the DC source until steady state condition is reached equals ________. (Give the answer up to one decimal place.)

Diagram for Electrical Engineering question 22

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

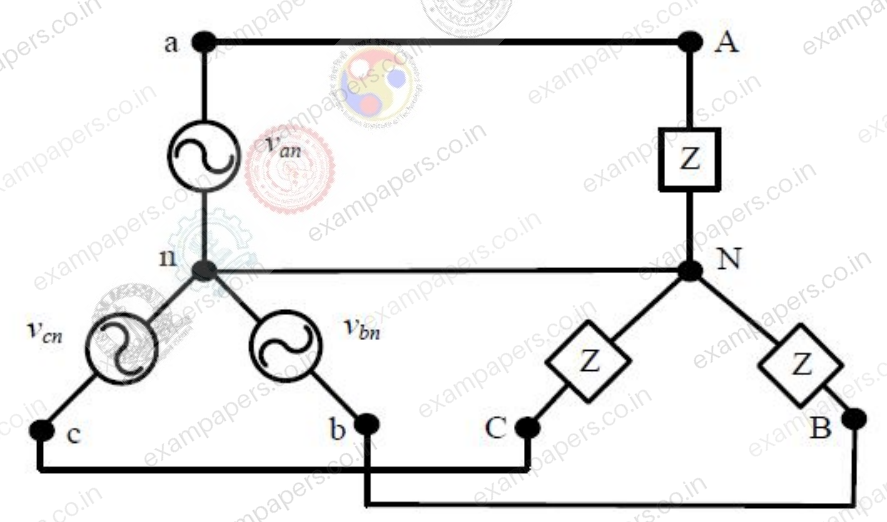

For the balanced Y-Y connected 3-phase circuit shown in the figure below, the line-line voltage is 208 V rms and the total power absorbed by the load is 432 W at a power factor of 0.6 leading.

The approximate value of the impedance

Diagram for Electrical Engineering question 29

Your answerChoose one option.

33 ∠ −53.1° Ω

60 ∠ 53.1° Ω

60 ∠ −53.1° Ω

180 ∠ −53.1° Ω

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

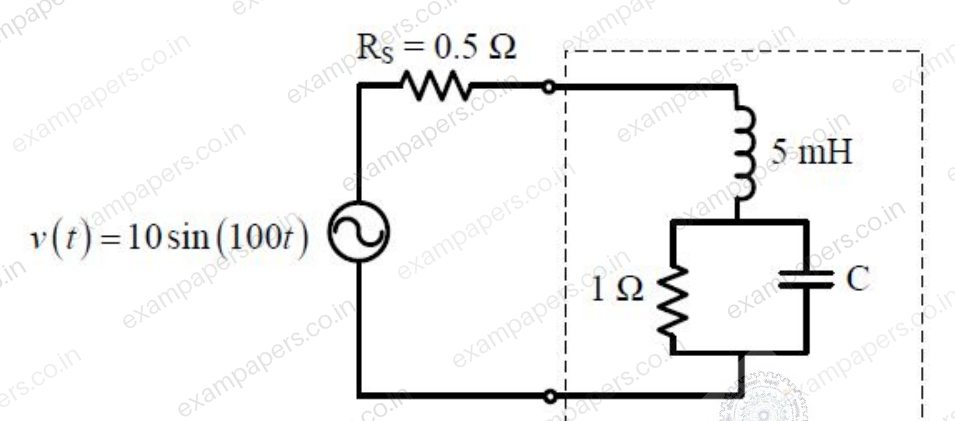

In the circuit shown below, the value of capacitor C required for maximum power to be transferred to the load is

Diagram for Electrical Engineering question 30

Your answerChoose one option.

1 nF

1 μF

1 mF

10 mF

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

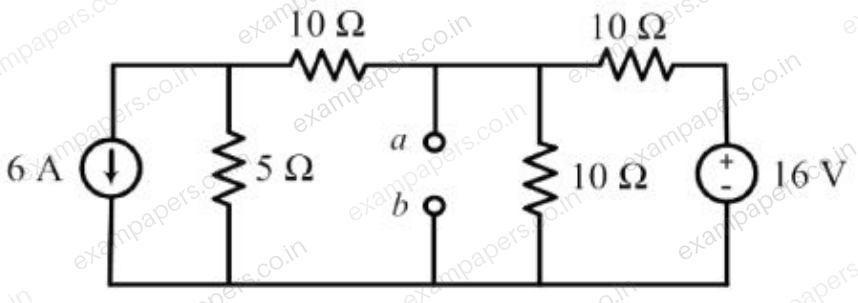

For the network given in figure below, the Thevenin’s voltage

Diagram for Electrical Engineering question 41

Your answerChoose one option.

-1.5 V

-0.5 V

0.5 V

1.5 V

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer
