The output expression for the Karnaugh map shown below is
Diagram for Electrical Engineering question 36

Your answerChoose one option.

Log in to check the answer

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

Question 36

Open question
EE-2MCQ2 marksNeeds review
Which of the following systems has maximum peak overshoot due to a unit step input?
Your answerChoose one option.

Log in to check the answer

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

Question 37

Open question
EEMCQ2 marksNeeds review
The logical gate implemented using the circuit shown below where, V₁ and V₂ are inputs (with 0 V as digital 0 and 5 V as digital 1) and Vₒᵤₜ is the output, is
Diagram for Electrical Engineering question 37

Your answerChoose one option.

Log in to check the answer

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

Question 37

Open question
EE-2MCQ2 marksNeeds review

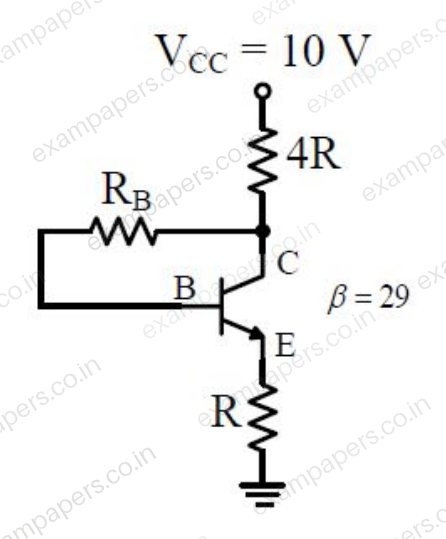

For the circuit shown in the figure below, it is given that

. The transistor has

and

when the B-E junction is forward biased.
Diagram for Electrical Engineering question 37

For this circuit, the value of

is
Your answerChoose one option.

Log in to check the answer

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

Question 38

Open question
EEMCQ2 marksNeeds review

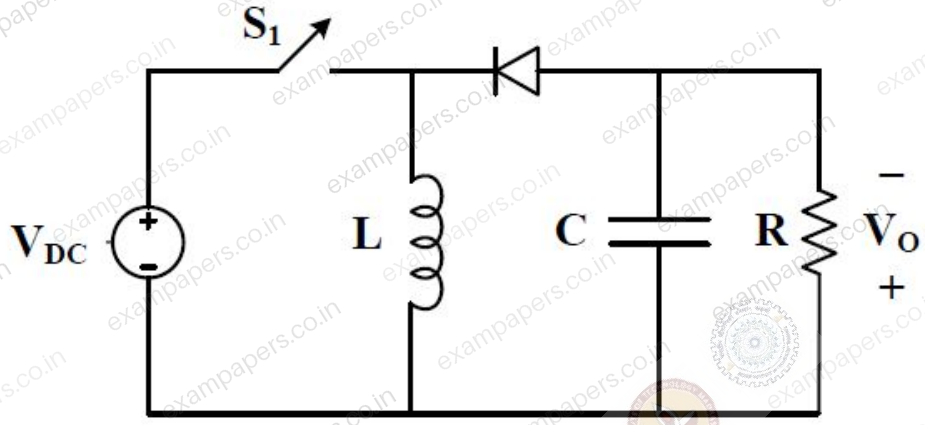

The input voltage V_DC of the buck-boost converter shown below varies from 32 V to 72 V. Assume that all components are ideal, inductor current is continuous, and output voltage is ripple free. The range of duty ratio D of the converter for which the magnitude of the steady-state output voltage remains constant at 48 V is
Diagram for Electrical Engineering question 38

Your answerChoose one option.

Log in to check the answer

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

Question 38

Open question
EE-2MCQ2 marksNeeds review
For the circuit shown below, assume that the OPAMP is ideal.
Diagram for Electrical Engineering question 38

Which one of the following is TRUE?
Your answerChoose one option.

Log in to check the answer

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

Question 39

Open question
EEMCQ2 marksNeeds review
A load is supplied by a 230 V, 50 Hz source. The active power P and the reactive power Q consumed by the load are such that 1 kW ≤ P ≤ 2 kW and 1 kVAR ≤ Q ≤ 2 kVAR. A capacitor connected across the load for power factor correction generates 1 kVAR reactive power. The worst case power factor after power factor correction is
Your answerChoose one option.

Log in to check the answer

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

Question 39

Open question
EE-2MCQ2 marksNeeds review
The figure below shows a half-bridge voltage source inverter supplying an RL-load with

and

. The desired fundamental frequency of the load voltage is 50 Hz. The switch control signals of the converter are generated using sinusoidal pulse width modulation with modulation index,

. At 50 Hz, the RL-load draws an active power of 1.44 kW. The value of DC source voltage

in volts is
Diagram for Electrical Engineering question 39

Your answerChoose one option.

Log in to check the answer

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

Question 40

Open question
EEMCQ2 marksNeeds review
The bus admittance matrix for a power system network is

pu. There is a transmission line, connected between buses 1 and 3, which is represented by the circuit shown in figure.
Diagram for Electrical Engineering question 40

Reactance is 0.05 pu; susceptance is 0.05 pu at each end. If this transmission line is removed from service, what is the modified bus admittance matrix?
Your answerChoose one option.

Log in to check the answer

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

Question 40

Open question
EE-2MCQ2 marksNeeds review
A person decides to toss a fair coin repeatedly until he gets a head. He will make at most 3 tosses. Let the random variable

denote the number of heads. The value of

, where

denotes the variance, equals
Your answerChoose one option.
