A sand water slurry of specific gravity 1.45 contains sand of grain density 2.6 g/cc. The weight percent of sand in the slurry (rounded off to two decimal places) is

Log in to check the answer

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

For a mining company the unit transportation cost from a mine to a washery, and supply and demand are shown below:

		Washery			Supply
Mine		A	B	C	D
M1		30	0	40	20	500
M2		24	16	22	40	700
M3		0	32	28	36	800
Demand		300	400	600	700

The total cost of transportation using the Vogel’s approximation method is

Log in to check the answer

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

In a bord and pillar panel, 6 square pillars are developed as shown in the figure below. The depth of the seam is 300 m and the average unit weight of overburden rock is 25 kN/m

. If the pillar strength is 15 MPa, the safety factor of the shaded pillar zone (round off to two decimal places) is

Diagram for Mining Engineering question 48

Log in to check the answer

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

Water enters a sump having the shape of an inverted frustum at a rate of 500 m

/h. The sump is initially filled up to 2.0 m height. The time taken in days to fill the remaining part of the sump (rounded off to one decimal places) is

Diagram for Mining Engineering question 49

Log in to check the answer

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

The uniaxial stress-strain behavior of a rock sample is shown in the figure.

Diagram for Mining Engineering question 50

The elastic modulus E is 20,000 MPa. If

is the plastic strain, the value of the damage parameter D (rounded off to two decimal place) is _____.

Log in to check the answer

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

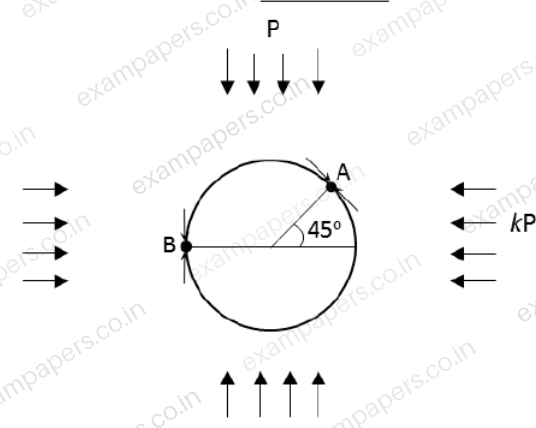

The insitu stress field around a circular tunnel is shown in the figure.

Diagram for Mining Engineering question 51

Points A and B are located at the boundary of the tunnel. If the tangential stress at Point A is 3 times of that at Point B, the value of insitu stress ratio, k is _____.

Log in to check the answer

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

Data related to explosive and blasthole are given below. Assuming 1 kcal to be 4.2 kJ, the power of explosive in GW in the blasthole (round off to one decimal place) is _____.

Parameter	Value
Diameter of the borehole	200 mm
Charge length	8 m
Density of ANFO	0.8 g/cc
Heat of explosion	912 cal/g
VOD	4500 m/s
Initiation	Bottom

Log in to check the answer

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

A rock block of mass 100 kg is to be lifted by a horizontal force P as shown in the figure below.

Diagram for Mining Engineering question 53

Smooth rollers are placed between the wedges. The coefficient of static friction between wedge A and surface C and between wedge B and surface D is 0.3. Ignoring the weight of the wedges and the friction between the roller and the wedges, the minimum force P in kg required to lift the block (round off to one decimal place) is _____.

Log in to check the answer

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

A joint plane dipping at 30° intersects the slope edge and the crest as shown in the figure below.

Diagram for Mining Engineering question 54

The unit weight of rock is 25 kN/m

, and cohesion and friction angle of the joint surface are 40 kPa and 25° respectively. The safety factor of the shaded block (round off to two decimal places) is _____.

Log in to check the answer

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

The random variable X has probability density function as given by

The value E(X

) (rounded off to one decimal place) is _____.

Log in to check the answer

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer
