GATE MT topic:metallurgy PYQs & Answers — Page 24

Questions 231–240 of 650. Imported answers require independent review unless marked reviewed.

Taking S as entropy, T as temperature, P as pressure, and V as volume, match Column I with Column II.

Column I (A) Gibbs Free Energy (B) Helmholtz Free Energy (C) Enthalpy (D) Internal Energy

Column II (1) depends on T, V and composition (2) depends on T, P and composition (3) depends on S, P and composition (4) depends on S, V and composition

Your answerChoose one option.

A – 2, B – 1, C – 3, D – 4

A – 4, B – 3, C – 2, D – 1

A – 3, B – 1, C – 4, D – 2

A – 2, B – 1, C – 4, D – 3

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

Match the transport processes in Column I with the relationships in Column II.

Column I (P) Molecular momentum transport (Q) Molecular mass transport (R) Molecular energy transport (S) Radiation energy transport

Column II (1) Stefan-Boltzmann law (2) Newton’s law of viscosity (3) Fick’s law (4) Fourier law

Your answerChoose one option.

P – 2, Q – 3, R – 4, S – 1

P – 4, Q – 3, R – 2, S – 1

P – 3, Q – 1, R – 4, S – 2

P – 2, Q – 1, R – 4, S – 3

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

For supersonic O

jet in basic oxygen furnace steelmaking, choose the correct combination from the following:

(1) Converging-diverging nozzle (2) Diverging-converging nozzle (3) O

velocity greater than sound velocity at nozzle throat (Mach number > 1) (4) O

velocity equal to sound velocity at nozzle throat (Mach number = 1) (5) Exit O

jet pressure ≥ atmospheric pressure (6) Exit O

jet pressure < atmospheric pressure

Your answerChoose one option.

(1), (4), (5)

(1), (3), (6)

(2), (3), (5)

(2), (4), (5)

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

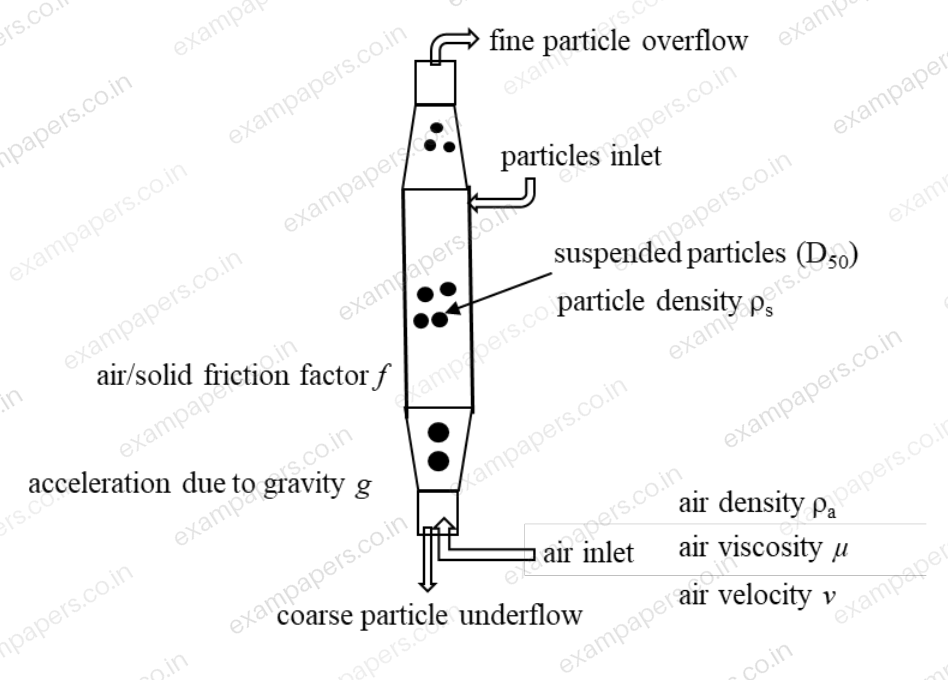

Elutriator is used to separate particles based on their sizes in flowing air as shown in the figure.

Diagram for Metallurgical Engineering question 39

Assuming spherical particles, the diameter (D

) of the suspended particles which have 50% chance to report to overflow by turbulent air flow is expressed as

Your answerChoose one option.

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

A fluid flow field is given by the velocity vector

. The curl of velocity at (1, 2, 3) is

Your answerChoose one option.

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

Given,

. S is a surface bounded by the planes

, and

. If

is the unit vector normal to S, then

Your answerChoose one option.

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

Match the processes in Column I with the corresponding applications in Column II.

Column I (P) Fused salt electrolysis (Q) Carbothermal reduction (R) Oxidation-refining (S) Matte converting

Column II (1) Ironmaking (2) Aluminium extraction (3) Copper extraction (4) Steelmaking

Your answerChoose one option.

P – 2, Q – 1, R – 4, S – 3

P – 4, Q – 3, R – 2, S – 1

P – 3, Q – 1, R – 4, S – 2

P – 2, Q – 4, R – 1, S – 3

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

Match Column I with Column II.

Column I (P) Gallium arsenide (Q) Barium titanate (R) Iron - 4 wt.% silicon (S) Yttrium-barium-copper oxide

Column II (1) Superconductor (2) Soft magnetic material (3) Semiconductor (4) Piezoelectric material

Your answerChoose one option.

P – 3, Q – 4, R – 2, S – 1

P – 2, Q – 4, R – 3, S – 1

P – 3, Q – 2, R – 1, S – 4

P – 4, Q – 2, R – 1, S – 3

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

Match the plots in Section I with the corresponding functions in Section II.

Section I: (P), (Q), (R), and (S) are the four plotted curves.

Diagram for Metallurgical Engineering question 44

Section II (1)

(2)

(3)

(4)

Your answerChoose one option.

P – 3, Q – 2, R – 4, S – 1

P – 2, Q – 3, R – 4, S – 1

P – 1, Q – 4, R – 3, S – 2

P – 2, Q – 3, R – 1, S – 4

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

Match the components in Column I with corresponding manufacturing processes in Column II.

Column I (P) Crank shaft (Q) Machine bed (R) Automobile brake pad (S) Beverage can

Column II (1) Sheet metal forming (2) Forging (3) Casting (4) Powder metallurgy

Your answerChoose one option.

P – 2, Q – 3, R – 4, S – 1

P – 3, Q – 4, R – 1, S – 2

P – 4, Q – 1, R – 3, S – 2

P – 2, Q – 3, R – 1, S – 4

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer
