For homogeneous nucleation of solid in a liquid of a pure metal, the critical edge length (in nm) of a cube shaped nucleus is __________ (answer up to two decimal places)

(Given: surface energy

J m

; change in volume free energy

J m

)

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

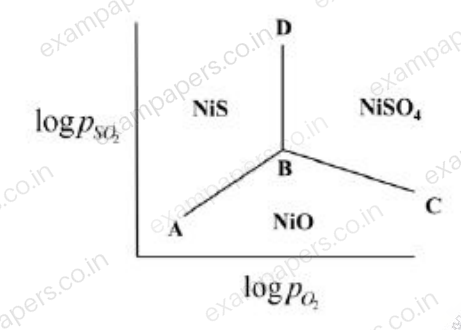

Assuming the solid phases to be pure, the slope of line BC in the predominance area diagram schematically shown below is ________ (answer up to two decimal places)

Diagram for Metallurgical Engineering question 44

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

For each of the crystallographic system listed in Group-I, match the corresponding minimum symmetry in Group-II

Group-I [P] Tetragonal [Q] Cubic [R] Monoclinic [S] Rhombohedral

Group-II [1] 1 two-fold rotation [2] 1 three-fold rotation [3] 4 three-fold rotation [4] 1 four-fold rotation

Your answerChoose one option.

P-3; Q-4; R-2; S-3

P-4; Q-3; R-2; S-1

P-1; Q-2; R-4; S-3

P-4; Q-3; R-1; S-2

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer
