A single-phase, full-bridge diode rectifier fed from a 230 V, 50 Hz sinusoidal source supplies a series combination of finite resistance, R, and a very large inductance, L. The two most dominant frequency components in the source current are:

Your answerChoose one option.

50 Hz, 0 Hz

50 Hz, 100 Hz

50 Hz, 150 Hz

150 Hz, 250 Hz

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

Thyristor

is triggered at an angle

(in degree), and

at angle

, in each cycle of the sinusoidal input voltage. Assume both thyristors to be ideal. To control the load power over the range 0 to 2 kW, the minimum range of variation in

is:

Diagram for Electrical Engineering question 12

Your answerChoose one option.

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

Which of the options is an equivalent representation of the signal flow graph shown here?

Diagram for Electrical Engineering question 13

Your answerChoose one option.

Diagram for Electrical Engineering question 13 (figure 2)

Diagram for Electrical Engineering question 13 (figure 3)

Diagram for Electrical Engineering question 13 (figure 4)

Diagram for Electrical Engineering question 13 (figure 5)

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

A common-source amplifier with a drain resistance,

, is powered using a 10 V power supply. Assuming that the transconductance,

, is 520

A/V, the voltage gain of the amplifier is closest to:

Your answerChoose one option.

−2.44

−1.22

1.22

2.44

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

A sequence detector is designed to detect precisely 3 digital inputs, with overlap sequences detectable. For the sequence (1,0,1) and input data (1,1,0,1,0,0,1,1,0,1,0,1,1,0), what is the output of this detector?

Your answerChoose one option.

1,0,0,0,0,1,1,0,1,0,0

0,1,0,0,0,0,1,0,1,0,0

0,1,0,0,0,0,1,0,1,1,0

0,1,0,0,0,0,0,1,0,0,0

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

Consider the initial value problem below. The value of y at

, (rounded off to 3 decimal places) is ____________.

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

A three-phase, 50 Hz, 4-pole induction motor runs at no-load with a slip of 1 %. With full load, the slip increases to 5 %. The % speed regulation of the motor (rounded off to 2 decimal places) is ____________.

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

Currents through ammeters A2 and A3 in the figure are

and

, respectively. The reading of the ammeter A1(rounded off to 3 decimal places) is ______ A.

Diagram for Electrical Engineering question 18

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

The Thevenin equivalent voltage,

, in V (rounded off to 2 decimal places) of the network shown below, is ____________.

Diagram for Electrical Engineering question 19

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer

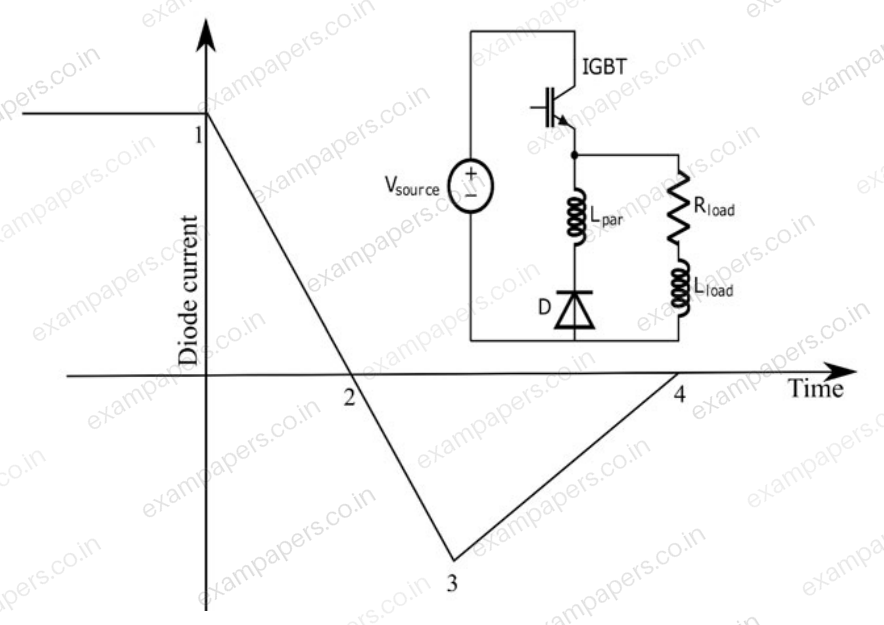

A double pulse measurement for an inductively loaded circuit controlled by the IGBT switch is carried out to evaluate the reverse recovery characteristics of the diode, D, represented approximate as a piecewise linear plot of current vs time at diode turn-off.

is a parasitic inductance due to the wiring of the circuit, and is in series with the diode. The point on the plot (indicate your choice by entering 1, 2, 3 or 4) at which the IGBT experiences the highest current stress is ____________.

Diagram for Electrical Engineering question 20

You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answer
