GATE CE · 2022 · CE
Question 65: Traffic Engineering
Give it a try, then reveal the answer to check your work.
Question 65
CENAT2 marksNeeds review

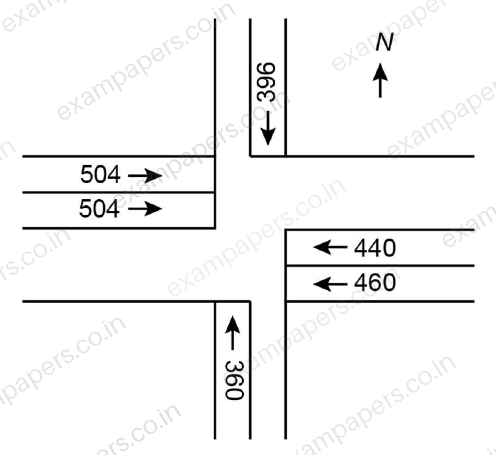

The lane configuration with lane volumes in vehicles per hour of a four-arm signalized intersection is shown in the figure. There are only two phases: the first phase is for the East-West and the West-East through movements, and the second phase is for the North-South and the South-North through movements. There are no turning movements. Assume that the saturation flow is 1800 vehicles per hour per lane for each lane and the total lost time for the first and the second phases together is 9 seconds.
The optimum cycle length (in seconds), as per the Webster’s method, is __________. (round off to the nearest integer)
Log in to check the answer
You can attempt this question now. Sign in to view the answer key, explanations and discussion.Log in to check answerEXPLORE & PRACTISE
Paper and topic context
See where this question comes from and choose what to practise next.
2022CE
GATE CE 2022 · Paper 2
Civil Engineering · Original paper archive
- Section
- Civil Engineering
- Question type
- Numerical answer (NAT)
- Marks
- 2 marks
Practise related topics
Explore more previous year questions using this question’s imported topic tags.
civil engineering
GATE CE previous year questions
infrastructure
GATE CE previous year questions
structural engineering
GATE CE previous year questions
traffic engineering
GATE CE previous year questions
